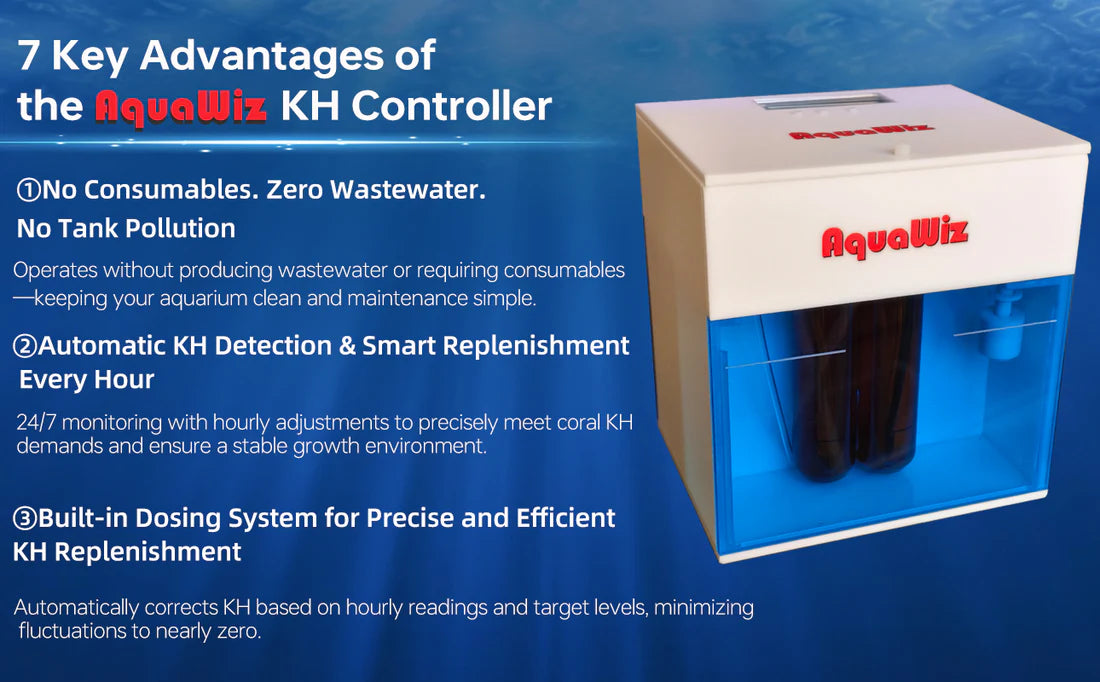

AquaWiz KH Controller™

Automatic KH Monitoring & Control – No Test Solutions, No Hassle

Maintaining KH levels (alkalinity) in an aquarium can be challenging. The traditional method involves manually mixing an acid like HCl with a water sample and recording the pH change. This process is not only complex and time-consuming—it often needs to be repeated daily.

Say Goodbye to Tedious Testing!

The AquaWiz KH Controller™ revolutionizes this process by automatically measuring and optionally maintaining KH levels in your tank. No test solutions are needed!

All you need is a reference solution—such as your existing tank water with stable alkalinity. This reference water is recycled and reused, producing no wastewater or acid byproducts.

Eco-Friendly & Effortless

• ✅ No test solutions needed

• ✅ No pollutants produced

• ✅ No more shortages of testing chemicals

Smart Features:

• Frequent Measurements: Coral consumes KH at varying rates—measure as often as every hour

• Auto Resume: Automatically resumes after a power outage

• Water Level Control: Monitors and maintains reference water reservoir levels

• Integrated Dosing Pump: Controls KH by dosing KH solution as needed

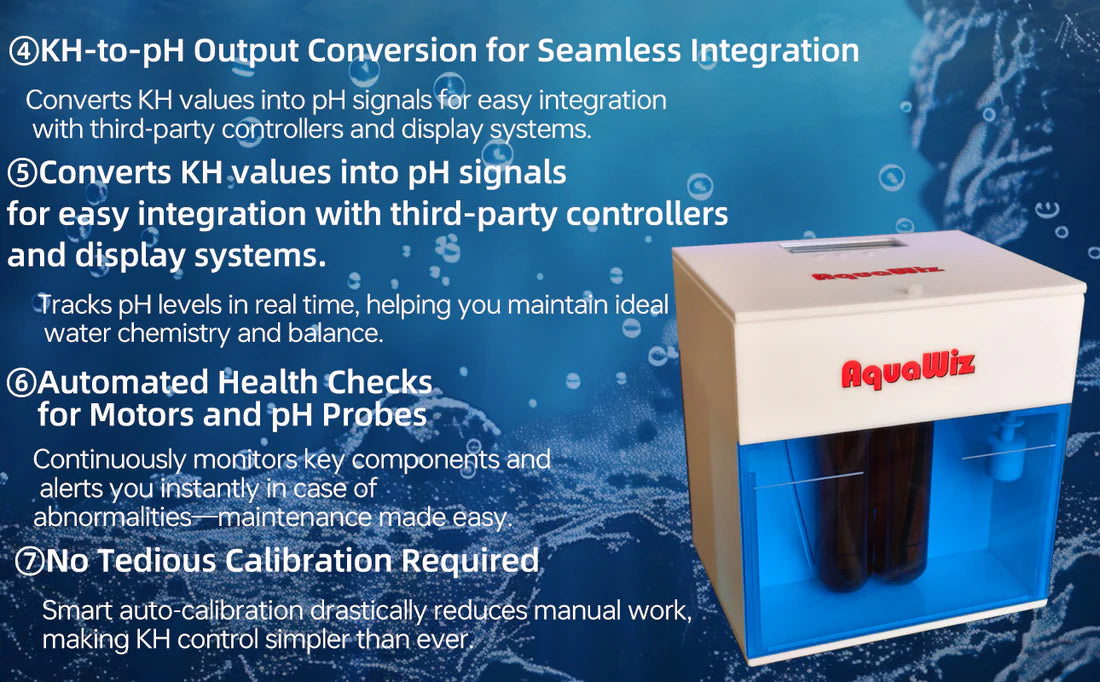

• KH-to-pH Converter: BNC plug allows KH readings via a standard pH controller

• Calibration-Free Electrode: Uses a specific pH electrode—no calibration required

• Electrode Health Monitoring: Detects electrode aging and alerts you for replacement

• Remote Monitoring:

  • Get email alerts if KH goes out of range

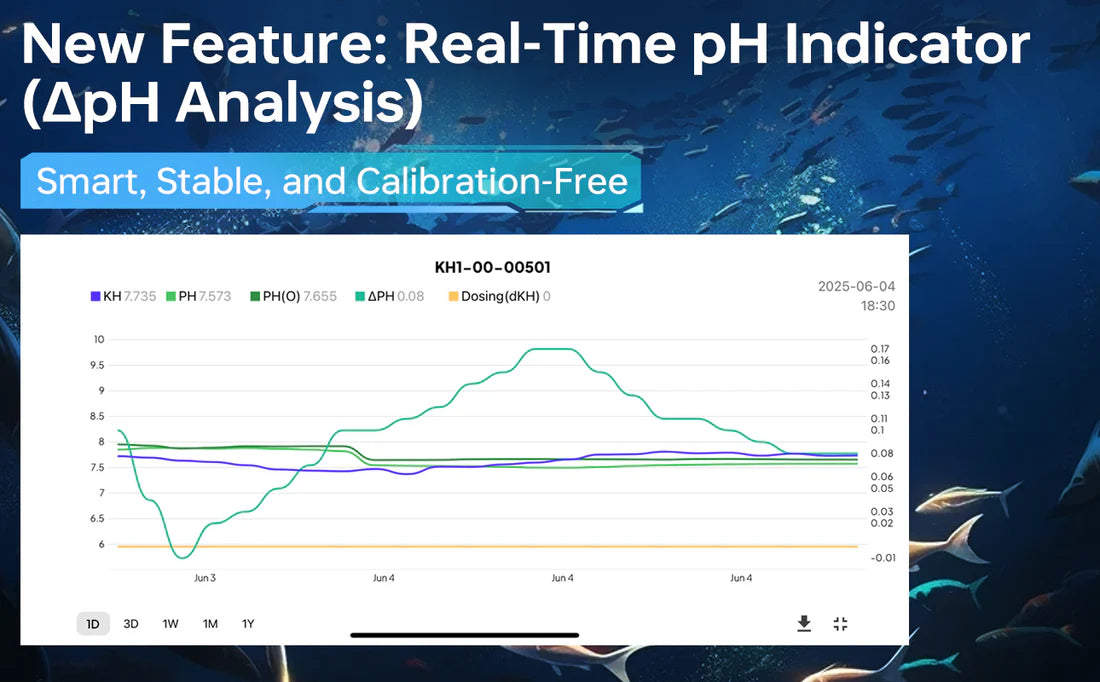

  • View KH history via line chart at www.aquawiz.net

• Custom Intervals: Set measurement intervals from 1 to 6 hours via web interface

• Silent Operation: Enclosed motor and pump, plus sleep timer setting

• User-Friendly Design: Open-lid access for easy installation and maintenance

⚠️ Important: Before using AquaWiz, ensure there is no stray voltage from other devices in your system. Stray voltage can affect performance.

Specifications:

• Power Adapter:

  • Input: AC 100–240V, 50/60Hz

  • Output: DC 12V 5A, 5.5mm plug

• pH Probe:

  • BNC connector, aquarium-grade

• Control Output:

  • DC 3.5mm / 1.35mm jack, 12V 1A

  • Activates when KH is below target

• KH Precision: ± 0.05 dKH

• KH-to-pH Output Accuracy: ± 0.01

• Tubing Size:

  • Inner diameter: 3mm

  • Outer diameter: 5mm

• Reference Reservoir Capacity: 20 oz (0.6 L)

• Unit Dimensions: 7.08” x 7.08” x 7.48” (18 x 18 x 19 cm)
